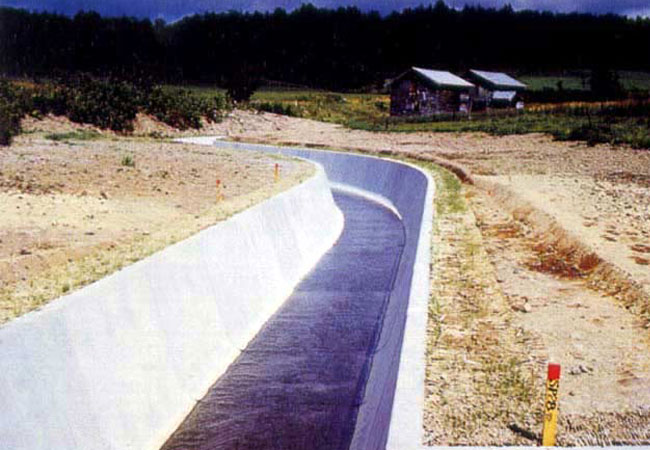

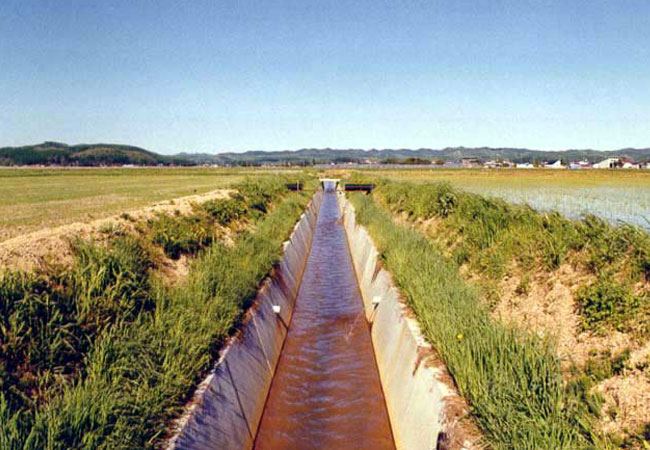

| 呼び名 | 主要寸法 | 部材厚 | ハンチ | 製品長 | 体積(m³) | 参考質量(kg) | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| a | b | c | d | e | f | r | L | |||
| 700×700 | 1,120 | 700 | 700 | 80 | 70 | 90 | 100 | 2,000 | 0.3917 | 901 |
| 800×800 | 1,280 | 800 | 800 | 80 | 70 | 100 | 100 | 2,000 | 0.4651 | 1,070 |
| 900×900 | 1,440 | 900 | 900 | 90 | 75 | 110 | 150 | 2,000 | 0.5785 | 1,331 |
| 1000×1000 | 1,600 | 1,000 | 1,000 | 90 | 75 | 120 | 150 | 2,000 | 0.6683 | 1,537 |
| 1100×1100 | 1,760 | 1,100 | 1,100 | 95 | 80 | 130 | 150 | 2,000 | 0.7866 | 1,809 |
| 1200×1200 | 1,920 | 1,200 | 1,200 | 110 | 85 | 140 | 150 | 2,000 | 0.9293 | 2,137 |
| 1300×1300 | 2,080 | 1,300 | 1,300 | 120 | 90 | 150 | 200 | 2,000 | 1.0992 | 2,528 |
| 1400×1400 | 2,240 | 1,400 | 1,400 | 130 | 95 | 160 | 200 | 2,000 | 1.2585 | 2,895 |
| 1500×1500 | 2,400 | 1,500 | 1,500 | 140 | 100 | 170 | 200 | 2,000 | 1.4308 | 3,291 |

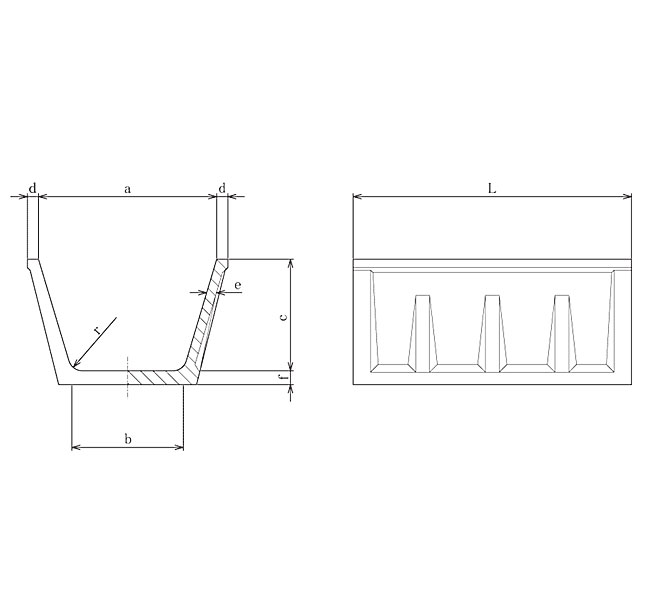

■規格寸法図

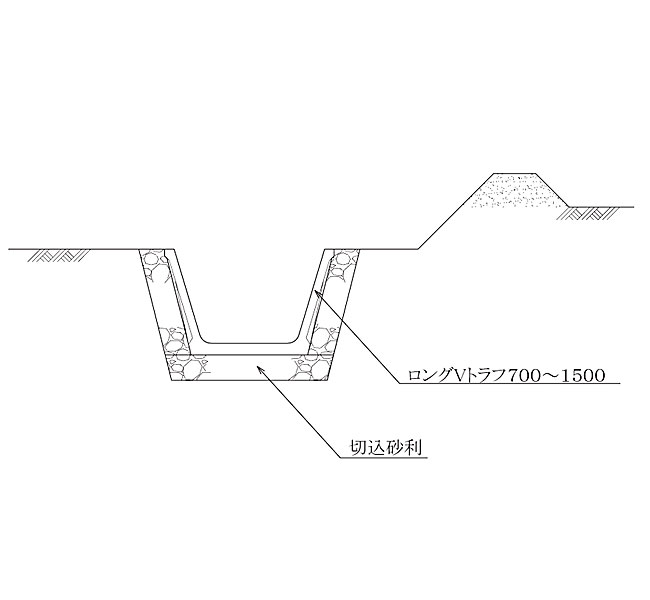

■敷設断面図例
